Features:

SPECIFICATIONS OF MONITOR:

1, Panel: 7″ digital panel

2, Resolution: 800*R.G.B*480

3, Screen ratio: 16:9

4, Backlight: LED, Luminance: 300 cd/m2

5, Contrast: 500：1

6, Viewing angle: UP—50°，DOWN—70°，LEFT—70°，RIGHT—70°

7, System: PAL/NTSC automatically

8,OSD Control: Brightness, contrast, saturation, volume, rotation, language (English, simplified Chinese)

9, Anti-Shock level: 4G

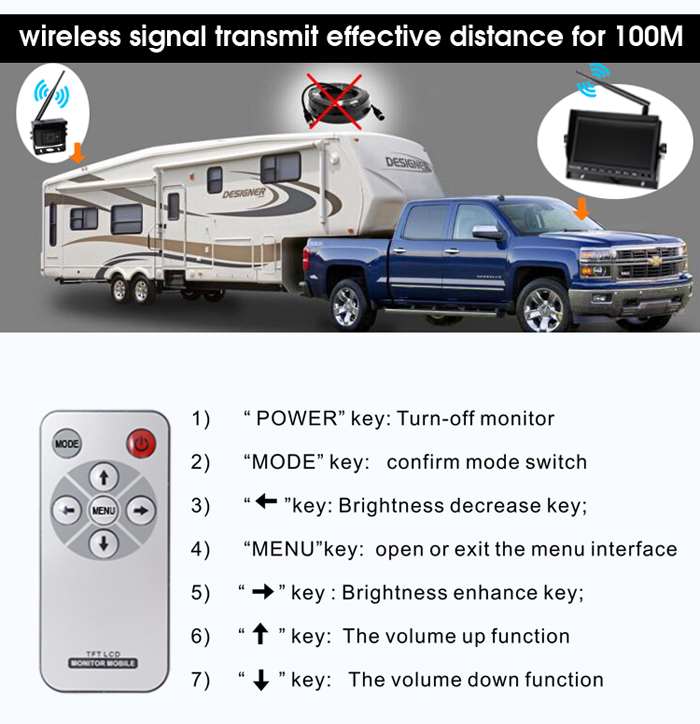

10, 2.4G wireless transmitting distance: 100M in open area

11, Power supply: DC 12V

12, Power consumption: ＜5W

13, Maximum current: ＜550mA

14, Working temperature: -10℃ to 60℃

15, Storage temperature: -20℃ to 70℃

16, Size:180mm*121mm*24mm

17, Weight: 630g

18, AV input: 4 channels 2.4G wireless AV input

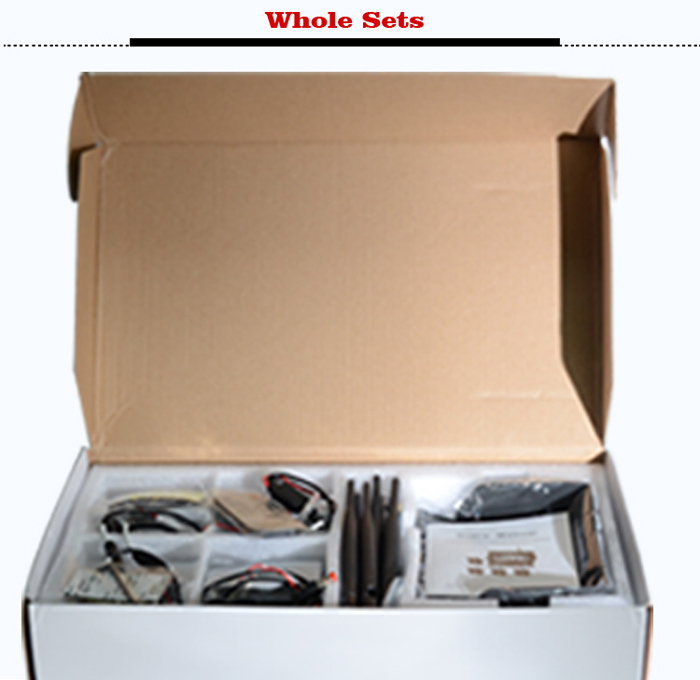

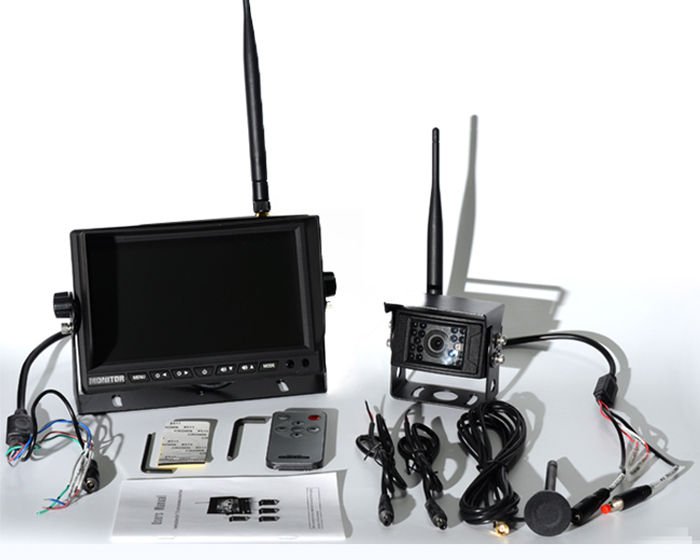

19, Accessories: 1PC  2.4G wireless camera, remoter, 2.4G antenna，3M 2.4G antenna extension cable，DC5.5 male extension cable，hexagon wrench，sun shield and bracket，user manual

SPECIFICATIONS OF CAMERA:

1.Image Type: 1/3 Color SONY CCD

2.Horizontal Resolution: 420TV Lines

3.Effective pixel: PAL:500(H)X582(V)

4.Usable lllumination:0Lux(Built ln 10 IR LED)

5.Viewing angle: 120°

6.Waterproof: IP67

7.Operation Temperature : -20°C~+70°C RH95%Max

8.Storage Temperature : -30°C~+80°C RH95%Max

9.Dimensions: 78(W)X48(D)X58(H)mm
