Features:
1. 180° super wide angle view
2. Multi-view image out of one single camera
3. Multiple view modes available
4. Easy to switch modes by a push button
5. Image & parking line adjustable (Left-, Right-, Up-, Downwards) on Pro Version
-
Model Name: 180°Super Wide Angle Multi- View Camera
Design Purpose:
This front camera is specially designed to avoid accidents at roads when drive's sight being blocked by buildings, wall, trees, etc. This PJ-180CM-F camera covers full front field with its super 180° horizontal angle, and the middle filed which is within driver's sight range is cut on purpose for enlargement of both corner views on screen. Super high resolution CMOS image sensor is adopted to assure high quality image even after enlargement. Other view modes such as top=-view is also available for parking use.
Specifications:
Image Sensor: 1/3" Color Digital CMOS
Pixels: 1280*720 Image Adjustment
Solution: PJ1510N1
Min. Illumination:0.2lux
TV Sytem: NTSC or PAL
Power Supply: 12V
View Angle: 180° Horizontal, 190° Digonal
Mounting Type: Bracket Mounting Near License Lamp
--------------------------------------------------------★★★★★--------------------------------------------------------
Increased Features:
--------------------------------------------------------★★★★★--------------------------------------------------------
Digital Image Correction:

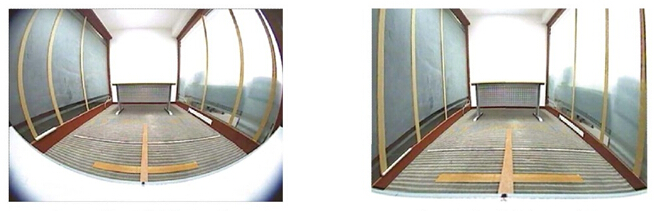

● image without digital correction ● image after digital correction
--------------------------------------------------------★★★★★--------------------------------------------------------
Spare Parts:
● camera harness (A) ● camera harness (B) ● 6m video extension cable
● user manual
-
