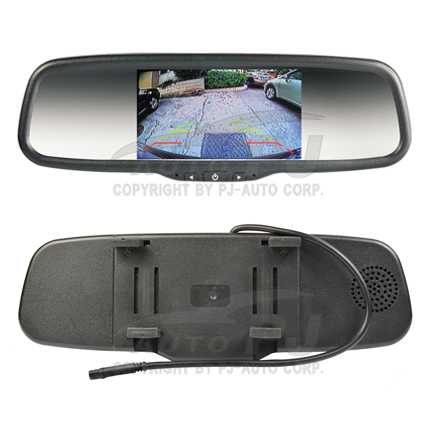

Model Name: 5" Universal Style Mirror Monitor (TM-5088A)

Special features:

5" Wide-screen LCD Panel

Standard 2-way Video Input

Invisible Screen When Turned Off

Both Universal Style and Specific Style available

Technical Data:
Screen type: TFT LCD
Screen size: 5-inch color
Resolution: 480 x 272
Brightness: 500cd/m2
Contrast: 350: 1
Aspect ratio: 16: 9
Power voltage: 12V
Power consumption: 2W (maximum)
Working environment: -20℃ to +65℃
OSD menu: English
Bluetooth: Optional

Installation Method:

                Pull downwards                                    Clip over factory mirror

--------------------------------------------------------★★★★★--------------------------------------------------------

Spare Parts:

                  ● wires                                       ● user manual

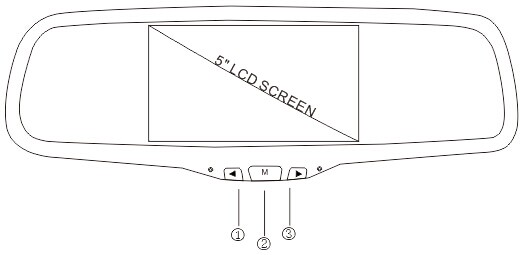

  Model Illustration:
